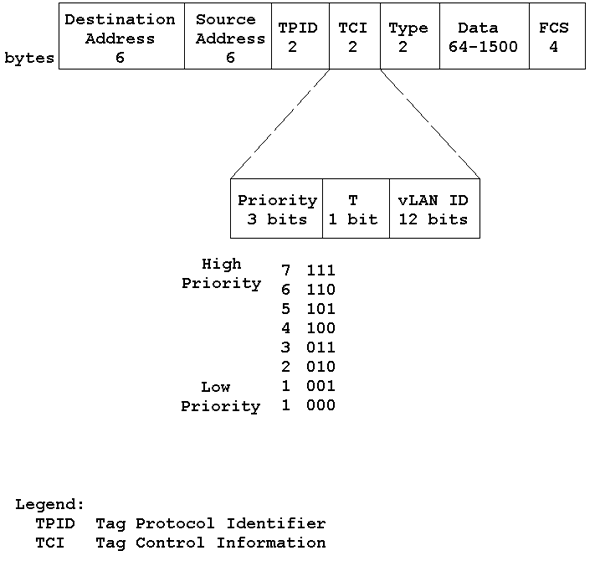

Figure 3: IEEE Traffic prioritization uses 3 bits in the two-byte Tag Control Information field, which represents half of the four byte virtual LAN frame extension
