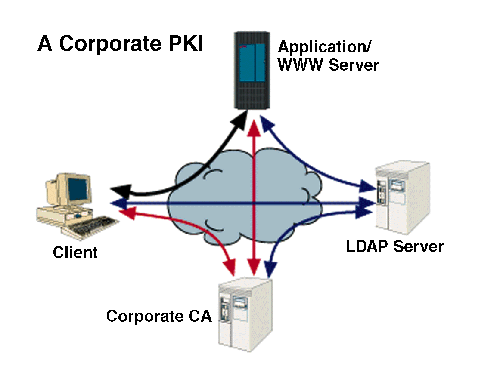

Figure 6: A corporate Public Key Infrastructure

Red lines represent certificate request, issuing, cerification and publishing transactions, blue lines represent LDAP directory look-up transactions to find certificates and revocation lists, and the black line represents a secure SSL client/server authenticated transation.
