One element of software design that few people bother to mention is pretty important: Be familiar with the technologies you're going to be using before you begin the design itself. Don't try to pick it up after you've made several major design decisions and burned a few bridges. If your design incorporates SQL and you are a total SQL virgin, pick up a book on SQL and read it thoroughly. Try to find another product that does SQL and play with it for awhile. You don't have to become an SQL expert to get your design down correctly, but you'd better understand what SQL is at a high level, and perhaps take some notes on whatever "gotchas" SQL can hand you.
Furthermore, this is true even if you intend to buy your SQL technology from someone else. It may be more true, since if you buy SQL in a can you may not have the opportunity to become an SQL expert by building it yourself.
I've found it broadly true that Pascal programmers tend to shy away from things like hardware interrupts, UART registers, and things like that. This technology will lie at the heart of JTERM, so I'm going to spend some time introducing you to it. Keep in mind that we haven't really gotten into our design yet. This is research -- though it will save us a lot of time later on.
There are certain things I would just as soon not know -- how bodies are embalmed comes to mind, as well as how stainless-steel hip joints are installed in little old ladies. Many people feel the same way about understanding the nature of communications software. Somewhere along the way, they learned just enough to suspect they don't want to learn any more.

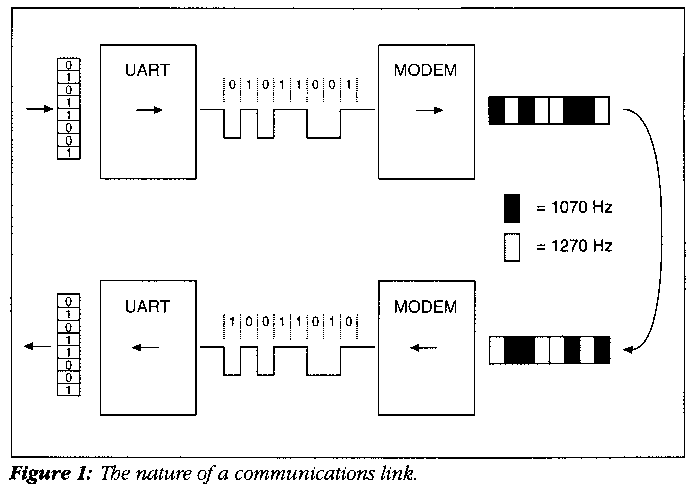

It's a little messier, but much less messy than code generation (in my opinion) or housebreaking small dogs. Mostly it's a translation process, as I've outlined in Figure 1.
The idea in any communications link is to get an 8-bit byte across a single-conductor line so that it arrives on the other end of the line with all bits intact. Obviously, the bits have to go one-by-one down the wire in follow-the-leader fashion. The first translation takes the eight parallel bits of a byte and sends them down the line one by one. The engine behind this translation is called a UART, which is a passable euphemism for Universal Asynchronous Receiver/Transmitter. The UART is one chip and a little support logic; in a PC-type machine, typically an 8255.
The UART has a register (which is just a fancy name for a memory location) into which the byte to be transmitted may be written. The UART then takes the byte in the register and translates it into a carefully timed series of voltage levels on a single output pin. A +5V level on the pin indicates the presence of a 1-bit, while a 0V voltage level indicates the presence of a 0-bit.
"Carefully timed" means that each bit is placed on the line for a very short and precisely measured period of time. Each bit may get three milliseconds, for example. What this means is that the UART will place a +5V voltage level on the line for three milliseconds, and by convention we say that a 1-bit has been placed on the line. When that three milliseconds is up, the next bit (by convention) is placed on the line. If that bit is also a 1-bit, the voltage on the line won't change; it simply remains at +5V for another three milliseconds. If the bit is a 0-bit, however, the voltage level will drop from +5V to 0 volts, where it will remain for three milliseconds. Then the next bit will be placed on the line, and the process continues until all 8 bits have had their moment on the line.
When you hook a serial cable to your serial port, (and a serial port on a PC is essentially a UART) you are providing a path for these changing voltage levels. Such a serial cable can get you anywhere within about 50 feet. Beyond that, the inductance of the wire in the cable begins to bog down the UART's rather meager ability to switch voltages quickly.
Fifty feet will get you across the room or maybe across the office. It won't get you across the street, however -- for that, the next translation stage is necessary. This is the modem, for Modulator/Demodulator.
At least for purposes of transmitting bits, the modem is best thought of as a tone generator. The venerable and thoroughly obsolete Bell 103 300-baud modem takes a +5 voltage level on the input side and converts it to a burst of audio tone at a frequency of 1270 Hz. A 0-bit is translated to a burst of audio at 1070 Hz. So rather than switching voltage levels from 0 volts to 5 volts, the modem plays a little two-note song as bits are presented to it. For each 1-bit, it plays a 1270 Hz tone for three milliseconds; for each 0-bit, it plays a 1070 Hz tone for three milliseconds.
Audio tones are much more readily sent down very long runs of wire than pure DC voltage levels. And audio tones are the only way to send signals over telephone lines, which deliberately block the passage of DC. The modem, in fact, lets you send data anywhere the phone lines go, which today is almost anywhere.
Once the transmitting modem's little song reaches the receiving modem on the other end of the link, the translation process runs in reverse. The receiving modem takes the bursts of audio tones and translates them into voltage levels. It sends those voltage levels over a short serial cable to a serial port. The UART in that serial port takes the sequence of voltage levels sent to it by the modem and reassembles the original byte in its register. And there it is: A byte has been broken down into loose bits, translated into loose beeps for shipment over phone lines, and then reassembled into the original byte, all in a very short period of time, even when the two ends are separated by half a planet.
That's about as simple as I can make the process sound. I've left out a number of critical issues like baud rate and framing just to get the basic idea across. We'll return to all the details in time.
I've described a communications link in such a way as to make you think it operates in only one direction. Not true -- your typical serial link can pass data in both directions at the same time. This is less of a trick than it may seem, since no one thinks it remarkable that you can talk and listen at the same time on the telephone. Talking and listening on the phone is possible because the person on the other end sounds different from the way you sound to yourself. And so it is with the modem. When two modems connect, they agree to sing in two different keys so that they can tell one another apart.
When two modems connect over a line, one (typically the one that coordinates the connection) is called the originate modem, and the other is called the answer modem. The originate modem uses the set of two audio tones I described above: 1070 Hz for a 0-bit, and 1270 Hz for a 1-bit. The answer modem, on the other hand, goes up the scale a little and uses 2025 Hz for a 0-bit and 2225 Hz for a 1-bit. Both modems contain circuitry that can easily distinguish between the two pairs of tones. Encoded in these two sets of tones, data can pass one another on the line as obliviously as though the line were in fact passing data in only one direction.
The cable between the serial port and the modem does not deal in audio tones. It deals in voltage levels, which do not mix well on a single wire. This is why your typical serial cable has two data conductors: One for data passing into the serial port, and another, separate conductor for data passing out of the serial port. (See Figure 1.) The UART, like the modem, is thoroughly ambidextrous and can handle data moving through itself in two directions at once without a burp.

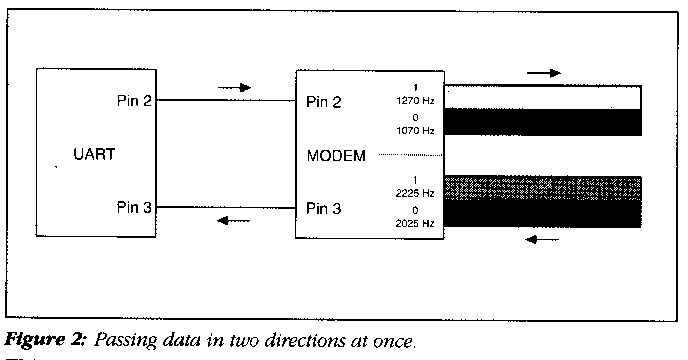

Figure 2 shows that what might seem like a single data channel between the two ends is actually two separate data channels. Between the UART and the modem, data is kept separate by being passed on separate wires. Between the two modems, data is kept separate by being encoded in two different and easily discernable pairs of audio tones. Operation in this fashion, where data flows simultaneously in both directions through a link, is called full duplex operation. There are circumstances where the line will only accommodate data moving in one direction at a time. This is called half duplex operation, and is not used very much in asynch work.
When you speak of a "serial port" on a PC, what you're actually talking about is a UART. When you send a byte of data out through the link, you write it into the UART, and the UART takes it from there. Similarly, when the UART receives a complete byte from the other end of the link, it makes that byte available in a register for your program to read.

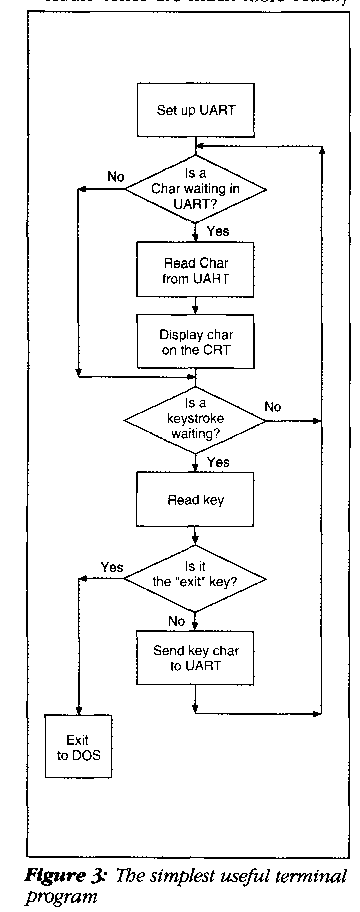

Keeping all of that in mind, the fundamental nature of a simple terminal program is simple indeed. I've drawn up a flowchart in Figure 3 to show you how simple it is.
What we have here is simply a loop that checks two things: Availability of a character coming in from the modem, and the availability of a keystroke typed at the keyboard. If a character is available from the modem, the program reads the character and displays it to the screen. If a key was pressed at the keyboard, the program reads the keystroke and hands it to the modem. One additional check is made to see whether the keystroke is a predefined exit key (Alt-X has come to be common) but this isn't essential as long as you don't mind re-booting out of your program. (Don't laugh; I used to use programs like that in my CP/M days, and the original version of Visicalc for the Apple III was designed such that a cold reboot was necessary to get out of it -- a rather pathetic antipiracy measure.)
If this were all it took to implement a communications link, I wouldn't be bothering to write whole columns about it. Figure 1 shows you the idea of a link through a serial port and modem, but it ignores a very serious problem: The UART doesn't retain characters somewhere until they are read. It simply places an incoming character up on a rack and expects you to come and get it. If a second character comes in on the link before you have had a chance to grab the first one, the first character will be nudged into nothingness and the second character will take its place.
If the polling loop is fast enough, you won't lose data. But once you start adding other features to the program that slow down the loop -- for example, allowing the remote system to position the cursor through control sequences -- lost characters are almost inevitable.
The solution is wonderfully messy: Allow the UART to generate an interrupt every time a character comes in on the line. The interrupt forces the CPU to stop what it's doing and go fetch the character from the UART right now, and place it someplace temporarily safe: a memory buffer. When the polling loop has time, it goes to the buffer for characters rather than directly to the UART.
Behind that one paragraph hides a universe of complication. It's messy but comprehensible -- and next time I'll explain the machinery of UART interrupts and how you can use them.
