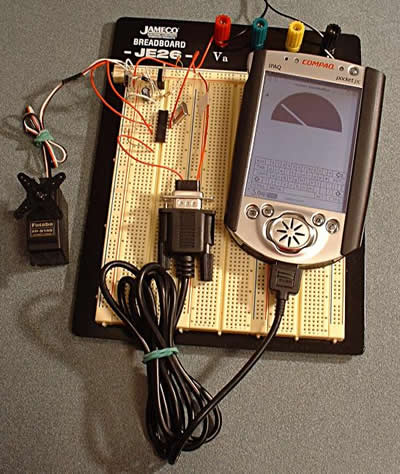

Figure 3: In the servo motor control system, the iPAQ shows the motor's position as a dial (right) which, when adjusted, sends a command to the PIC16F84 (middle), which sends the appropriate pulses to the servo motor (left)
